Automatic Floating Fish Feed Pellet Production Line Machine

Automatic Floating Fish Feed Pellet Production Line Machine
Automatic Floating Fish Feed Pellet Production Line Machine
Automatic Floating Fish Feed Pellet Production Line Machine Automatic Floating Fish Feed Pellet Production Line Machine Automatic Floating Fish Feed Pellet Production Line Machine

Large Image :  Automatic Floating Fish Feed Pellet Production Line Machine

Product Details:
Place of Origin: CHINA SHANDONG
Brand Name: MT
Certification: CE,ISO
Model Number: MT 65 70 85 95
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD 28000-30000 SET
Packaging Details: PLASTAIC FILM PACKING
Delivery Time: 30-45 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 SET MONTH

Automatic Floating Fish Feed Pellet Production Line Machine

Description
Product Name: Automatic Floating Fish Feed Pellet Production Line Machine Capacity: 100-1500kg
Inverter: ABB Materials: Stainless Steel 201 304
After-sales Service Provided: Oversea Service 、online Seivice Color: Sliver

Automatic Floating Fish Feed Pellet Production Line Machine

Product Description of pet food production line:


Equipments formulating of pet food making machine:

Mixer → Conveyor→ Extruder→ Conveyor→ Dryer→ Conveyor→ Flavoring machine→ Cooling Machine→ lifter Packing Machine

General Description: Automatic Floating Fish Feed Pellet Production Line Machine can be used to processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds. Large Scale Animal Floating Sink Fish Feed Pellet Extruder Pet Cat Dog Food Making Processing Extrusion Machine used of meat, cereals, grain, vitamins and minerals. The general grains, such as soya bean meal, corn meal, cracked wheat, and barley, are often used to improve the consistency of the products. The diameter of particle is Φ1-16mm.By different moulds can make triangle, heart shape, five-pointed star, bone shape, fish shape pet food
Application: pet food, chew food, pet treat.
Capacity: 500 kg / h or less, 800 ~ 1200 kg / h, 1500 ~ 2500 kg / h.

Model
Power Consumption Actual Consumption Output size
MT65 processing line
84KW 59KW 100-150 kg/h 25000*1500*2000 mm
MT70 processing line 132KW 92KW 150-200 kg/h 30000*1500*2000 mm
MT85 processing line 155KW 105KW 450-500 kg/h 35000*1500*3000 mm



Automatic Floating Fish Feed Pellet Production Line Machine 0



Details Images of pet food production line:



Automatic Floating Fish Feed Pellet Production Line Machine 1
Flour Mixer
Technical Parameter:
Power:4 KW 7.5 KW 15 KW
Mixing time: 100-120 second per time
Tank volume: 20-30 70-80 170-180kg/time
Dimension:1000*800*1200mm
Quantity: 1pc
Flour Mixer is used to mix the raw material,like corn flour, rice flour with liquid and other additives.
Automatic Floating Fish Feed Pellet Production Line Machine 2

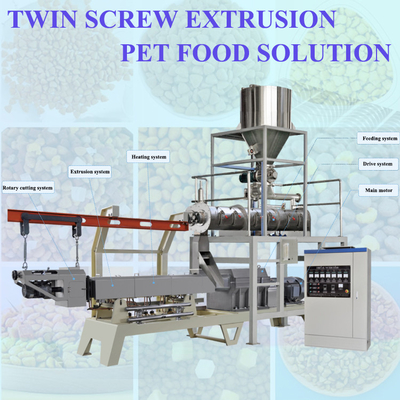

Double Extruder Machine
Technical Parameter: feeder Power:0.75kw,frequency control extruding power :22kw ,frequency control cutting Power:0.75kw,frequency control oil pump Power:0.37kw heating power:10kw,three areas controlled separately Speed control :Three frequency control speed Dimension:2800×900×1800mm
Automatic Floating Fish Feed Pellet Production Line Machine 3
Dryer machine
Function: the stainless steel with flange ,the main pipe the head touch with 10mm ,it directly touch fire,the middle area with 1.5MM,it have circulation pipe to make a hot air circulation,the dryer under with big roller and foot margin,it can move and
fixed.

Technical Parameter:

Heating Type:gas type

Motor power:3.75KW

Gas consumption:10-12 m³/h

Layer:Five layers

Dimension:5000 x 1200 x 2600mm

Quantity: 1pc

Automatic Floating Fish Feed Pellet Production Line Machine 4
Seasoning machine
Function:its function that through the drum turn,at the same time with oil sprayer system to spray some oil or sugar or mixing
some seasoning powder.
Advantage:
1. the Drum with 3000MM length
2. It easily to cleanTechnical Parameter:
Technical Parameter:
Power:0.75kw
Drum Diameter:700MM
Dimension:3000 x 800 x 1900mm
Quantity: 1pc



Company Profile of pet food production line:



Automatic Floating Fish Feed Pellet Production Line Machine 5

Our Jinan MT Machinery & Equipment .,LTD company is a manufacturer professional do the extrusion snacks food and Automatic Floating Fish Feed Pellet Production Line Machine . Our company has good experience of the industry development. We have well-experienced managers, outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system.



Packing & Delivery of pet food production line:



Automatic Floating Fish Feed Pellet Production Line Machine 6

Packing of Automatic Floating Fish Feed Pellet Production Line Machine :

♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.
♥We can adjust according to the customer’s demand.



Certification of pet food production line:

Automatic Floating Fish Feed Pellet Production Line Machine 7

We can provide the electronic edition certificates for Jinan MT Machinery extruded Automatic Floating Fish Feed Pellet Production Line Machine : if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.



Our services of pet food production line:



Automatic Floating Fish Feed Pellet Production Line Machine 8



Our engineer would go to buyer's place to install the machine, when the equipment arrived at buyer's place.
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warranty and life-time maintenance service;


FAQ of pet food production line:

Q1: Are you a trading company or factory?

A1: We are a manufactory,can give u best service .

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1years

Q3: When can I get my machine after I paid?
A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?
A4: We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians
