Breakfast Cereal Corn Flakes Making Machine 100kg/H

Breakfast Cereal Corn Flakes Making Machine 100kg/H
Breakfast Cereal Corn Flakes Making Machine 100kg/H
Breakfast Cereal Corn Flakes Making Machine 100kg/H Breakfast Cereal Corn Flakes Making Machine 100kg/H Breakfast Cereal Corn Flakes Making Machine 100kg/H Breakfast Cereal Corn Flakes Making Machine 100kg/H Breakfast Cereal Corn Flakes Making Machine 100kg/H Breakfast Cereal Corn Flakes Making Machine 100kg/H Breakfast Cereal Corn Flakes Making Machine 100kg/H

Large Image :  Breakfast Cereal Corn Flakes Making Machine 100kg/H

Product Details:
Place of Origin: jinan
Brand Name: MT
Certification: CE
Model Number: MT-65/70/70C/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10000-50000
Packaging Details: plastic/wooden box/nude
Delivery Time: 10-50days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 10sets/month

Breakfast Cereal Corn Flakes Making Machine 100kg/H

Description
Name: Corn Flakes Making Machine Breakfast Cereals Production Line Corn Chips Manufacturing Plant Capacity: 100kg/h
Material: Stainless Steel Type: Electric And Automatic
Application: Corn Flakes Dimension(l*w*h): 42000x4000x2300mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas Power(w): 90kw
Weight: 9000kgs Function: Multifunctional
Condition: New Raw Material: Corn Flour
Usage: Corn Flakes Feature: Low Energy High Speed
High Light:

100kg/H Corn Flakes Making Machine

,

Automatic Corn Flakes Manufacturing Machine

,

100kg/H Breakfast Cereal Production Line

100kg/h Corn Flakes Making Machine Breakfast Cereals Production Line Corn Chips Manufacturing Plant
Product Description
Description: 100kg/h Corn Flakes Making Machine Breakfast Cereals Production Line Corn Chips Manufacturing Plant can make corn flakes, coco rings, grain balls, corn stars and various shapes of breakfast cereals.flaking machine oat flaking machine corn is not only service as breakfast cereal mixed with milk or coffee, but also a kind of leisure snacks. The other shapes of cereals such as rings, balls, chocks, curls etc. are available by this flaking machine oat flaking machine corn.
Raw materials(corn flakes): corn or other grains powder.
Advantage of 100kg/h Corn Flakes Making Machine Breakfast Cereals Production Line Corn Chips Manufacturing Plant:

1. The main extruder adopts frequency speed controlling with high automation.

2. The screws are made of the stainless steel and special craft, which has the advantage of durable usage, high pressure,and longer life.

3. The forced lubrication system ,which can guarantee the equipment transmission life longer.

4. Auto-temperature control system and self-cleaning ,which makes it more convenient.

5. It has the widest range of applications and can produce different products with different equipment and models.

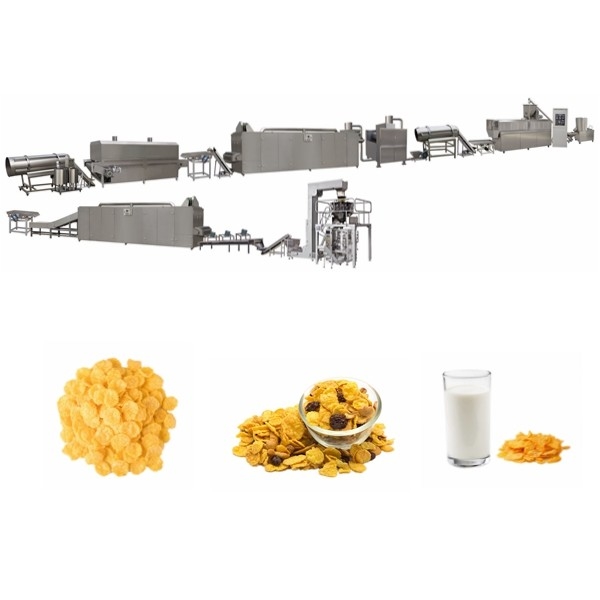

Flow chart :

Mixer - screw conveyer- Twin-screw extruder -Sifter-Air conveyer -Flaking machine -Air conveyer - Three-layer oven - Hoister - Microwave Oven -Melting sugar machine -Sprayer sugar-Hoister -Roller - Air compressor- Hoister - Five-layer oven- Cooing machine

Breakfast Cereal Corn Flakes Making Machine 100kg/H 0
Specification
Model
Installed power
Real power
Output
Dimension
MT-65
84kw
59kw
120-150kg/h
21000x1200x2200mm
MT-70
132kw
92kw
200-250kg/h
23000x1500x2200mm
MT-85
239KW
167KW
300-400kg/h
28000*3500*4300mm
MT-75
186KW
140KW
400-500kg/h
24000*1500*2800mm
Mixer--Double screw extruder--Dryer machine

Flour Mixer
Technical Parameter: Power: 4kw
Capacity: 20-30kg/tie
Dimension: 1050*750*1300mm
Function: This machine is used to mix the raw material.
Breakfast Cereal Corn Flakes Making Machine 100kg/H 1

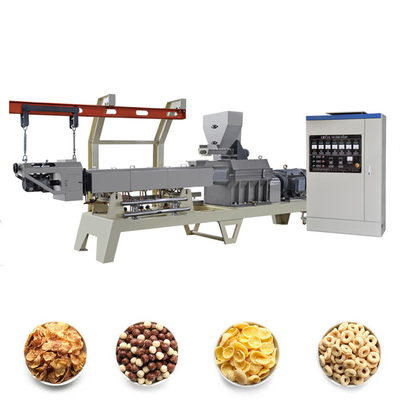

Twin screw extruder
Function:
To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould
Material:stainless steel, carbon steel
Motor:22kw, 30kw, 45kw etc
Capacity:100kg/h to 500kg/h

Breakfast Cereal Corn Flakes Making Machine 100kg/H 2

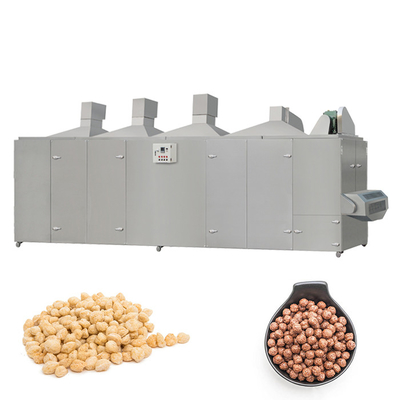

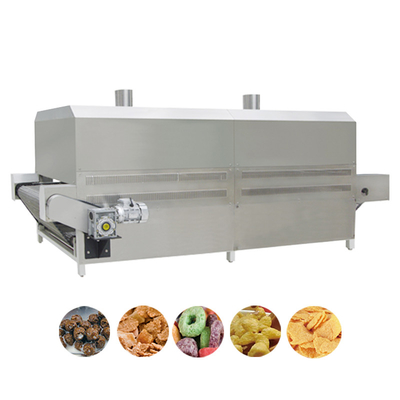

Dryer machine
Voltage : 380V, 50Hz
Dimension :10000X1300X2600mm
The oven is used to dry the products. The moister in the food which come out of the extruder is about 30-35%. With the dry of the dryer, the moister can get down below 16%and this is easy to be storage for long time.
Breakfast Cereal Corn Flakes Making Machine 100kg/H 3
Sample Show
Breakfast Cereal Corn Flakes Making Machine 100kg/H 4
Raw material
Corn meal, sugar, salt, palm oil, cocoa powder, vitamins, minerals, food color etc.
Samples shape
Round, fingernails, (Change moulds to make all shapes unfilled snack).
How to Test Our Machine



1.We’ll offer machine working videos first.
2.We offer customized machine trial in our factory.
① If customers offer formulas, we’ll try our extruders in stock according to your formulas with our local purchased
materials. We’ll offer trial videos. We charge material cost, which will be refunded when you place order.
② If we couldn’t find the raw materials listed in your formulas, customers should offer raw materials.
③ If customer wants to check the trial samples, we’ll deliver samples by DHL, TNT, FedEx, etc. Customer will bear the
freight.
3. We also welcome you to visit our factory and we'll test machine specially to you, according to your requirments.
Packing & Delivery
Breakfast Cereal Corn Flakes Making Machine 100kg/H 5

Packing:

inside plastic bag, outside wooden case for corn flakes extruder equipment (Based on the customers' need adopt the wooden case or wooden pellets, etc.).

Delivery Details : 30 days after order

Services & Customer

Breakfast Cereal Corn Flakes Making Machine 100kg/H 6

We will provide the most thoughtful services for our clients:
Before sales service of the extrusion machine
1. Free consultation service before, during, and after sales;
2. Free Project planning and design services upon clients' special demands;
3. Debugging and inspecting of equipment until everything is functional before leaving the factory;
During sales service of the extrusion machine
Management of equipments' long distance shipping from seller's factory to the named place by buyer;
After sales service of the extrusion machine
1. Training of equipment maintenance and operating personally;
2. New production techniques and formulas;
3. Provide 1 year complete warranty and life-time maintenance service.

FAQ
Q: What kinds of products can be made?
A: corn flakes, puffs, breakfast cereals food, animal feed, animal feed, soy protein texture food.
Q: What's the delivery time?
A: We usually need 40-45 days for large sizes, depends on the finished product, so machine wash-change.
Q: What about the installation service?
A: Depending on the whole line of equipment price list, it usually takes 2-3 weeks. We will provide you with installation instructions, such as start, as well as their operation machines for quality control, testing of different recipes.
Q: What is the warranty period for using the device?
A: 1 year for auger and cylinder due to modular design, changing the wearing parts will be OK, unlike a full set of screws, no need to change the whole set.
