1000kg/H Macaroni Pasta Production Line

Certification
China Jinan MT Machinery & Equipment Co., Ltd. certification
China Jinan MT Machinery & Equipment Co., Ltd. certification
Customer Reviews
The product quality is particularly good. During the epidemic, we were also guided by video to debug. The product has been debugged and is ready for mass production. It is very good.

—— Jon

I'm Online Chat Now

1000kg/H Macaroni Pasta Production Line

1000kg/H Macaroni Pasta Production Line
1000kg/H Macaroni Pasta Production Line 1000kg/H Macaroni Pasta Production Line 1000kg/H Macaroni Pasta Production Line 1000kg/H Macaroni Pasta Production Line 1000kg/H Macaroni Pasta Production Line 1000kg/H Macaroni Pasta Production Line

Large Image :  1000kg/H Macaroni Pasta Production Line

Product Details:
Place of Origin: CHINA SHANDONG
Brand Name: MT
Certification: CE
Model Number: MT 100 120 130
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD 30000-50000 SET
Packaging Details: PLASTAIC FILM PACKING
Delivery Time: 30-45 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 SET MONTH

1000kg/H Macaroni Pasta Production Line

Description
Product Name: Manufacturing Plant/macaroni Pasta Production Line/screw Pasta Making Machine Usage: Food Processing Industry
Core Components: Motor Capacity: 100-1000kg/h
Warranty: At Least 1 Year From The Date Of Completion Of The Commissioning. After-sales Service Provided: Field Maintenance And Repair Service
High Light:

1000kg/h macaroni pasta production line

,

SS304 macaroni pasta production line

,

1000kg/h macaroni making machine

Manufacturing plant/macaroni pasta production line/screw pasta making machine



Manufacturing plant macaroni pasta production line screw pasta making machine adopts the flour ,corn starch , and potato starch as the raw material then forms a kind of leisure food after extruding ,slaking,forming,drying,frying and inflating. Our company has improved the production line performance by means of the marketing research and our own technology and makes the operator operate the equipment easily and make the craft more perfect. Manufacturing plant/macaroni pasta production line/screw pasta making machine is indispensable production food equipment for everyone taking on the food profession.

The pasta food machine is characterized by unique technique, rational configuration, high automation and stable performance. It is the good equipment for macaroni factory using. The screws of the pasta food making machine are made by ally steel and special craft, the screw life is longer, uses building block system structure, may combine willfully.
The forced lubrication system of pasta food making machine, by guaranteed equipment transmission longer life.

Product Name Manufacturing plant/macaroni pasta production line/screw pasta making machine
Material Food grade stainless steel 201/304
energy You can choose electricity or gas or diesel or steam as some machine energy
Standard The motor most of with Siemens made in china or china top brand and delixi or delta inverter,also with good brand electrcity parts
Function Pasta noodle making machine
Type Single screw extruder machine
Application Macaroni pasta
Power If with electricity with normal capacity about 100kw,if with gas or diesel about 50-60kw



Product Description:



                      1000kg/H Macaroni Pasta Production Line 0

                                             1000kg/H Macaroni Pasta Production Line 1


































1000kg/H Macaroni Pasta Production Line 2

Mixer

Output:10-30kg/load

Power:4kw

Tank Size: φ600 x500mm

Dimention:1000*800*1200mm

Flour Mixer is used to mix the raw material, like corn flour , rice flour, fish bone flour with liquid and other additives. Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.
1000kg/H Macaroni Pasta Production Line 3

Screw conveyor

Driving Power: 0.75kw

Dimension: 2700×500×2400mm

Screw Conveyor is used to convey the materials to the feeder of the extruder. Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.



1000kg/H Macaroni Pasta Production Line 4

Single Screw Extruder Machine

Single screw extruder machine have a wide range of puff snacks with different formulations can be obtained;The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost;Automatic dosing unit for utilization with any type of flours and starches (size should be 60-80mesh);The screws are made by 38CrMoAIA with the hardness of 55hrc, which is hard and strong;

1000kg/H Macaroni Pasta Production Line 5

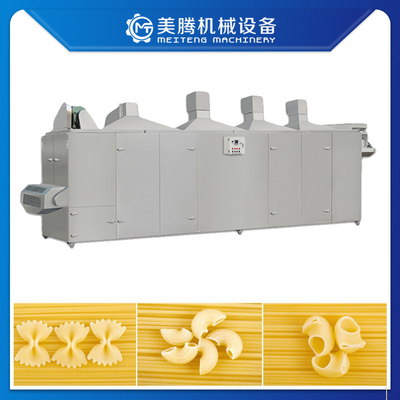

Dryer machine

Five-Layers Roaster is used to dry a wide range of products, such as macaroni,dog snacks, corn flakes, core filling food, etc. Five layer structure can prolong the drying time and reduce the coverage area; Each layer is made of mesh belt with stainless steel; Side guard to prevent products falling from the belt; Various speed inverter drives for five layers; Auto temperature control system with the temperature range between 15-180℃; The body is well sealed to prevent any heating leakage, and thus reduce the savings in energy; Equipped with special thermal-protective coating to prevent any burnt or scald to the workers; Adjustable door hinge; flat laying mesh belt; tailor-made materials receiver Three kinds of power available: Electric, gas or oil.



Company Profile:



1000kg/H Macaroni Pasta Production Line 6

Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well trained techincal workers.By constant technical exchange with well_known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year



Certifications:

1000kg/H Macaroni Pasta Production Line 7



Packaging & Shipping:



1000kg/H Macaroni Pasta Production Line 8



Customer:



1000kg/H Macaroni Pasta Production Line 9



Our service:



1. Professional technical team designs production line to meet your demand.

2. Help our custom to develop the old production line and carry out new products.

3. Production line planning and designing.

4. Factory lay out planning.

5. Debugging of equipments until producing products and everything is normal.

6. Supply with 12 months warranty and life-time maintenance.



FAQ



Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippmen
