MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder

MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder

Large Image :  MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder

Product Details:
Place of Origin: jinan
Brand Name: MT
Certification: CE
Model Number: MT-65/70/70C/75
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10000-50000
Packaging Details: plastic/wooden box/nude
Delivery Time: 10-50days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 10sets/month
Contact Now

MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder

Description
Machine Name: Stainless Steel Inflated Food Extruding Line Corn Puff Snacks Production Line Capacity: 200-250kg/h
Model: MT-70C Energy: Electric/steam/gas/diesel
Shape: Customer's Demand Type: Double Screw Extruder Machine
Raw Material: Grain Flour Power: 30-200kw
Service: Installation & Receipt Technology Support Motor: According To Customer's Demand
Highlight:

MT-70C Corn Puff Production Line

,

MT-70C double screw extruder machine

,

Inflated Food double screw extruder machine

Stainless Steel Inflated Food Extruding Line Corn Puff Snacks Production Line

Product Description

Stainless Steel Inflated Food Extruding Line Corn Puff Snacks Production Line adopt corn, rice, wheat,

oat, barley etc as ingredients to make puffed snack. Through frication of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick, ring, fruit loop, star, wheel and flower etc.

Our extrusion machines can produce various uncoated, coated or filled cereal based snacks – with a wide variety of recipes and shapes. Stainless Steel Inflated Food Extruding Line Corn Puff Snacks Production Line adopt twin-screw extrusion technology and are highly flexible. They can be easily modified to process new products such as filled products, corn chips snacks or bread crumb snacks, with just easily adding some auxiliary equipment.

Flow chart:

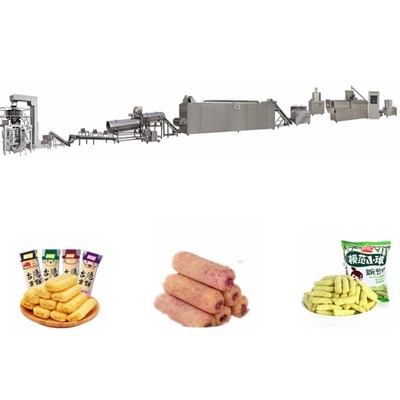

grinding→mixing→extruding→drying→flavoring→cooling→packaging

MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 0
Technical Parameter
Model
Installed power
Real power
Output
Dimension
MT-65
84kw
59kw
120-150kg/h
21000x1200x2200mm
MT-70
132kw
92kw
200-250kg/h
23000x1500x2200mm
MT-85
239KW
167KW
300-400kg/h
28000*3500*4300mm
MT-75
186KW
140KW
400-500kg/h
24000*1500*2800mm
MT-95
260KW
180KW
500-1000kg/h
31000*3500*4300mm
Product Details
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 1

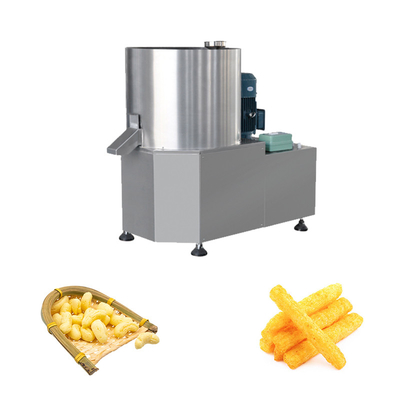

Flour Mixer
Technical Parameter: Power: 4kw
Capacity: 20-30kg/tie
Dimension: 1050*750*1300mm
Function: This machine is used to mix the raw material.
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 2
screw conveyor
Usage:This machine is used to elevate the mixed raw material to the extruder.
Voltage:380V 50HZ Three Phase
Motor:Power:1.1KW
Size:3000*600*2300mm
Material:stainless steel
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 3

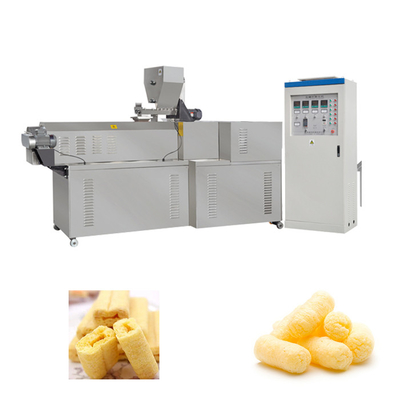

Twin screw extruder
Function:To extrude the raw materials and make them to the required shape and size of the corn snacks food pellets by mould.
Material:stainless steel, carbon steel
Motor:22kw, 30kw, 45kw etc
Capacity:100kg/h to 500kg/h
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 4

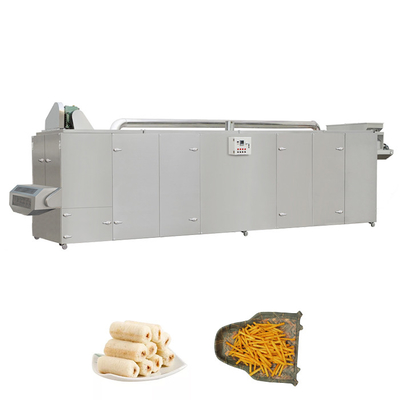

Dryer machine
Voltage : 380V, 50Hz
Dimension :10000X1300X2600mm
the oven is used to dry the products. The moister in the food which come out of the extruder is about 30-35%. With the dry of the dryer, the moister can get down below 16%and this is easy to be storage for long time.
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 5

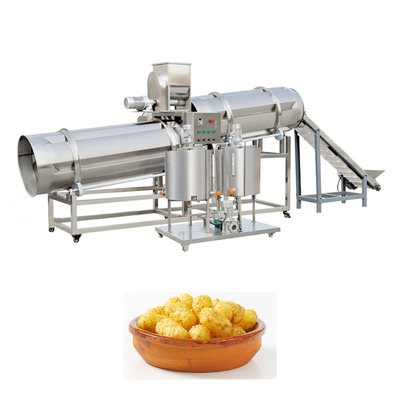

Seasoning line
Dimension: 4000×1900×1880mm
Voltage: 380V 50HZ Three Phase
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 6

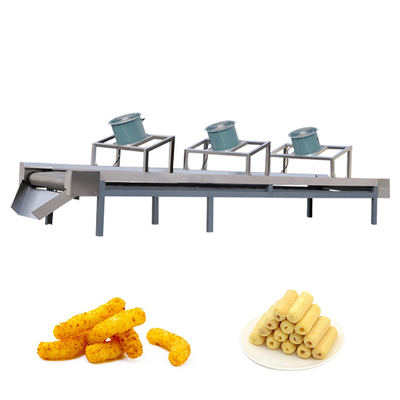

Cooling Machine
Usage:This machine is used to cool the corn flakes.
Voltage:380V 50HZ Three Phase
Motor:1.5KW
Dimension:6000*1000*800mm
Material:stainless steel, carbon steel
Product Feature
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 7
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 8
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 9
1 More consistency in production and control of product quality.
2 High productivity, maximum capacity can be 100kg/hr.
3 Novel structure and better control of production process.
4 Higher economical opportunities business potential.
5 The same processing line is able to process various types of raw materials and mix formulations, and to produce a wide range of end products.
6 With the possibility to target easily the four basic quality attributes of food products that are taste, flavour, texture and nutrition; product innovation may include upgrading of existing products as well as new products.
Samples
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 10
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 11
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 12
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 13
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 14
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 15
Raw materials for Stainless Steel Inflated Food Extruding Line Corn Puff Snacks Production Line
Adopts corn, rice, wheat, oat, barley, millet, sorghum etc as main ingredients.
Basing on modern extrusion technique, puffed snack is made from cereals powder, vitamins and minerals as raw materials, which is fit for different age grades people. After being inflated and heated, its volume is puffed. It leads to the change of its organization structure. This food is multihole, fluffy and crispy, which is one of the most popular foods in the world.
Packing & Delivery
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 16
· Inside package is plastic film, outside is wooden or plywood case.
(The package of good sale 100kg extruded corn puffed snacks food production line is based on the customers’ need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
Company information
MT-70C Corn Puff Production Line Inflated Food Double Screw Extruder 17
Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have
well-experienced managers,outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.
FAQ
1.What’s your payment terms?
Our payment terms is 40% T/T as down payment, 60% by irrevocable L/C at sight or T/T before delivering
2. What’s your Guarantee?
We provide 1 year complete Guarantee and life-time maintenance service
3. How about the installation?
We will dispatch our technicians to your factory to guide you installation and commissioning work and training your operator.
If you have any needs or enquiries, please feel free to contact me! Thanks.
