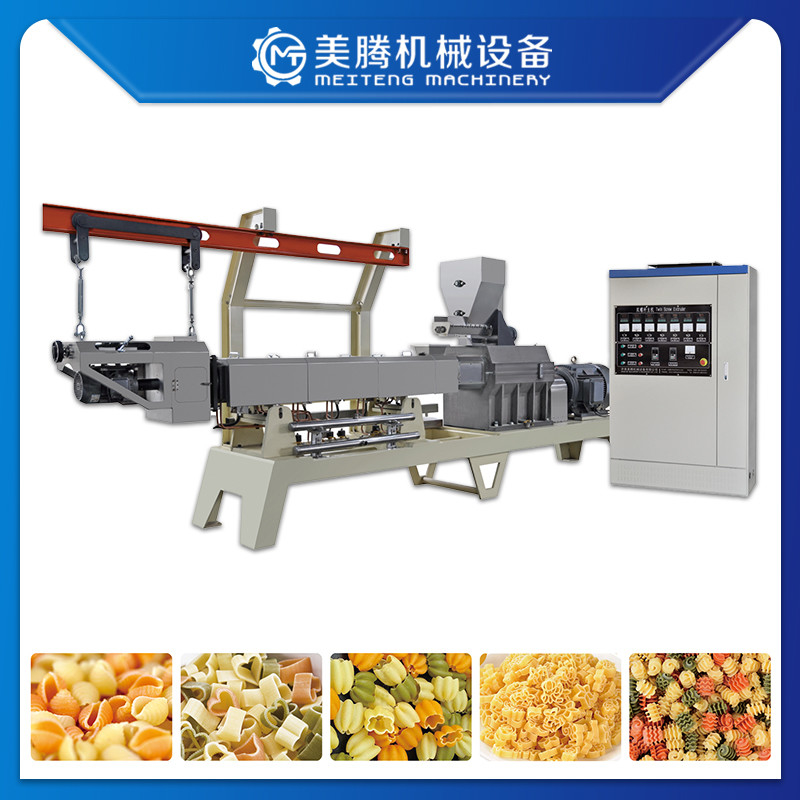

Automatic 1000kg/H Macaroni Making Machine Pasta Production Line

Automatic Macaroni Making Machine Pasta Production Line

Product description:

Automatic Macaroni Making Machine Pasta Production Line is absorbing the advanced foreign technology based on research and development performance and technical quality indexes reach the international advanced level of the similar equipment.This production line from the raw material ingredients ,raw material,conveying,extrusion,baking until a complete product. Can produce all types of pasta,spaghetti food.

1). commercial pasta making machines, it adopts the technology of occident equipments.
2). It have full-automatic and semi-automatic commercial pasta making machines.
3). original : wheat flour potato starch, corn starch, cassava starch, , etc.
4). It can process various materials, widely applied in many industries: macaroni/ pasta baby rice powder, sesame paste, and nut paste food etc.
5). we can provide special design according to clients requirements.
6). Inverter control,good stability,centralized control,easy operation , large output and short time,save cost etc.

Product Parameters:

Product Description:

Mixer

Output:10-30kg/load Power:4kw Tank Size: φ600 x500mm Dimention:1000*800*1200mm

Flour Mixer is used to mix the raw material, like corn flour , rice flour, fish bone flour with liquid and other additives. Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.











Dryer machine

Five-Layers Roaster is used to dry a wide range of products, such as macaroni,dog snacks, corn flakes, core filling food, etc. Five layer structure can prolong the drying time and reduce the coverage area; Each layer is made of mesh belt with stainless steel; Side guard to prevent products falling from the belt; Various speed inverter drives for five layers; Auto temperature control system with the temperature range between 15-180℃; The body is well sealed to prevent any heating leakage, and thus reduce the savings in energy; Equipped with special thermal-protective coating to prevent any burnt or scald to the workers; Adjustable door hinge; flat laying mesh belt; tailor-made materials receiver Three kinds of power available: Electric, gas or oil.

Screw conveyor

Driving Power: 0.75kw Dimension: 2700×500×2400mm

Screw Conveyor is used to convey the materials to the feeder of the extruder. Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.







Single Screw Extruder Machine

Single screw extruder machine have a wide range of puff snacks with different formulations can be obtained;The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost;Automatic dosing unit for utilization with any type of flours and starches (size should be 60-80mesh);The screws are made by 38CrMoAIA with the hardness of 55hrc, which is hard and strong;









Company Profile:

Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well trained techincal workers.By constant technical exchange with well_known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery.
Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year

Certifications:

Packaging & Shipping:

Customer:

Our Service:

1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory; Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines, how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw, how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.
