Corn Puffing Ball Snack Food Production Line Twin Screw Extruder

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder
Corn Puffing Ball Snack Food Production Line Twin Screw Extruder Corn Puffing Ball Snack Food Production Line Twin Screw Extruder Corn Puffing Ball Snack Food Production Line Twin Screw Extruder Corn Puffing Ball Snack Food Production Line Twin Screw Extruder Corn Puffing Ball Snack Food Production Line Twin Screw Extruder

Large Image :  Corn Puffing Ball Snack Food Production Line Twin Screw Extruder

Product Details:
Place of Origin: CHINA SHANDONG
Brand Name: MT
Certification: CE
Model Number: MT 65 70 70C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD 25000-35000 SET
Packaging Details: PLASTAIC FILM PACKING
Delivery Time: 30-45 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 SET MONTH

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder

Description
Product Name: Customizable Corn Puffing Ball Snack Food Twin Screw Extruder Snack Food Production Line Voltage: 380v-440v 50hz-60hz
Weight: As Per Capacity Warranty: 12 Month
Condition: New Output: 200-250kg/h 300-500kg/h
High Light:

Puffing Ball Snack Food Production Line 50hz

,

Corn Puffing Ball twin screw extruder

,

Snack twin screw extruder 50hz 60hz

Customizable Corn Puffing Ball Snack Food Twin Screw Extruder Snack Food Production Line

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 0



Product Description:

Customizable Corn Puffing Ball Snack Food Twin Screw Extruder snack pellet production line is full automatic from mixing, extruding, shaping, cutting, drying to flavoring in one-pass operation. By changing the moulds and process technology, can produce various shapes of puffing snacks such as rings, flowers, balls, strips, moons, stars etc. Also, you can produce core-filling snacks with the same line. All the puffed food taste crispy, easy to be digested.

1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, with extends gear life.
7. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.



Model
Power Consumption
Actual Consumption
    Output
                       size
MT65 processing line
84KW
59KW
100-150 kg/h
25000*1500*2000 mm
MT70 processing line
132KW
92KW
150-200 kg/h
30000*1500*2000 mm
MT70C processing line
155KW
105KW
200-250 kg/h
35000*1500*3000 mm





Details Images of snack pellet production line:

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 1

Mixer machine

Power: 3kw
Output: 70-100kg/h
Size: 900*700*1200mm
Function:To mix the material such as the wheat flour and waster.

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 2

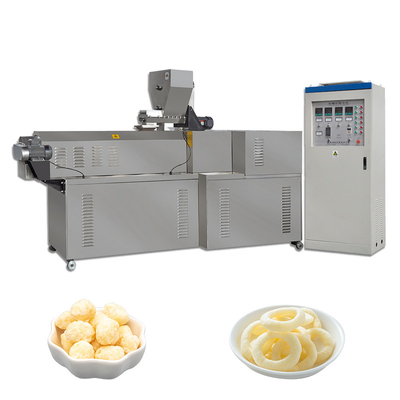

Double screw extruder machine:

Technical Parameters:
Power(KW): 30kw
Dimension(m): 3×1.1×1.9
Heating power: 14kw
Feeding power: 0.75kw
Cutting power:0.75kw
Function: Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, feeding of additives, injection of liquids , de-gassing, cooking and forming.



Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 3

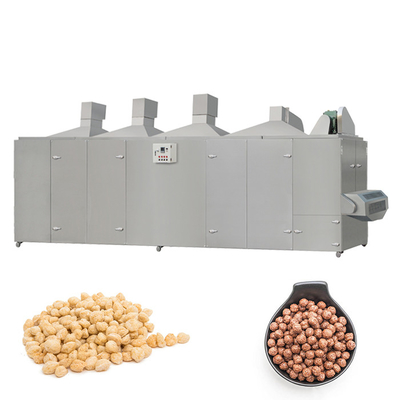

                                                                                             Dryer Machine

Structure detail: Stainless steel structure, especially the parts in contacting with the raw material or products; Five layer structure can prolong the drying time and reduce the coverage area; Each layer is made of mesh belt which is made by SUS; Side guards to prevent products from falling off the belt; Various speed inverter drives for five layers; Auto temperature control system with the temperature MAX 160℃; The body is well sealed to prevent any heating leakage, and thus reduce the savings in energy; Three kinds of power can be choices: Electric, gas or oil.





Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 4



Seasoning machine:

Drum Driving Power:1.1kw
Drum Size:φ700 x3000mm
Power:0.75kw
Flavoring System is used to spray the flavor powder and oil onto snacks evenly. Includes FOUR devices: Coating Drum, Oil Sprayer,Small Hoist and powder hopper. Stainless steel structure, especially the parts in contacting with the raw material or products; Rotary speed can be adjustable; Rotary direction can be adjustable (clockwise or anti-clockwise); The tank is equipped with heating machine for heat the oil and other liquid. The heating temperature can be adjustable;





Company Profile of snack pellet production line:

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 5

Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery. Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.



Packing & Delivery of snack pellet production line:



1.Packaging Specification
Outside Package: Wooden Packing as Export and Standard.
Inner Package: Stretch Film
2.Delivery time
5-10days after received the whole payment.
3.About Shipping
We can be responsible for the shipping,of course,we can also accept and cooperate with your agent if you have shipping forwarder in China

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 6



Certification of snack pellet production line:

Corn Puffing Ball Snack Food Production Line Twin Screw Extruder 7

We can provide the electronic edition certificates for Jinan MT Machinery extruded Customizable Corn Puffing Ball Snack Food Twin Screw Extruder Snack Food Production Line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.



Our services of snack pellet production line:



a. ) Consultation service before, during, and after sales;
b. ) Project planning and design service;
c. ) Debugging of equipment until everything is functional;
d. ) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e. ) Training of equipment maintenance and operating personally;
f. ) New production techniques and formulas;
g. ) Provide 1 year complete warranty and life-time maintenance service.


FAQ of snack pellet production line:
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1years

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians
