Dry Pet Food Processing Line For The Production Of Dog Food Extruder

Certification
China Jinan MT Machinery & Equipment Co., Ltd. certification
China Jinan MT Machinery & Equipment Co., Ltd. certification
Customer Reviews
The product quality is particularly good. During the epidemic, we were also guided by video to debug. The product has been debugged and is ready for mass production. It is very good.

—— Jon

I'm Online Chat Now

Dry Pet Food Processing Line For The Production Of Dog Food Extruder

Dry Pet Food Processing Line For The Production Of Dog Food Extruder
Dry Pet Food Processing Line For The Production Of Dog Food Extruder
Dry Pet Food Processing Line For The Production Of Dog Food Extruder Dry Pet Food Processing Line For The Production Of Dog Food Extruder Dry Pet Food Processing Line For The Production Of Dog Food Extruder Dry Pet Food Processing Line For The Production Of Dog Food Extruder Dry Pet Food Processing Line For The Production Of Dog Food Extruder Dry Pet Food Processing Line For The Production Of Dog Food Extruder Dry Pet Food Processing Line For The Production Of Dog Food Extruder

Large Image :  Dry Pet Food Processing Line For The Production Of Dog Food Extruder

Product Details:
Place of Origin: jinan
Brand Name: MT
Certification: CE
Model Number: MT-65/70/70C/75/85/90/95
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 10000-50000
Packaging Details: plastic/wooden box/nude
Delivery Time: 10-50days
Payment Terms: L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability: 10sets/month

Dry Pet Food Processing Line For The Production Of Dog Food Extruder

Description
Product Name: Dry Pet Animal Food Processing Line Equipment For The Production Of Dog Food Capacity: 100-1000kg/h
Application: Dog Pellet Size: 1.5-8mm
Type: Double Screw Extruder Machine Warranty: 12 Months
Certification: CE Voltage: Customer's Requirement,380V 50HZ 3phase
Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas
Material: Stainless Steel Food Grade Raw Material: Bone Meal,bean Pulp,corn Powder And So On
Energy: Electricity Diesel Steam Gas
High Light:

Dry Pet Animal Food Processing Line

,

1000kg/h Pet Food Processing Line

,

1000kg/H Dry Pet Food Production Line

Dry pet animal food processing line equipment for the production of dog food

Product Description



Dry pet animal food processing line equipment for the production of dog food is plant or animal material intended for consumption by dogs or other canines.

The pet food is close to the human beings food in the fine level, the health index and the ingredients, some of them request more highly than human beings. In extruder, the ingredients are cookedunder intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife. Dog food is dried in a multi-pass dryer until its moisture content is low enough to make it shelf stable. Dog food may pass through a coating drum where animal fat and vitamins are applied
onto dog food.

Dry Pet Food Processing Line For The Production Of Dog Food Extruder 0

Specification
MT double screw extruder machine
Function:Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, feeding of additives, injection of liquids, de-gassing, cooking and forming.
The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost; Automatic dosing unit for utilization with any type of flours and starches (the size should be 60-80mesh);
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 1
Model
Installed Power
Power Consumption
Output
Size
MT65
80kw
56kw
120-150kg/h
22000*1200*2200mm
MT70
128kw
90kw
200-250kg/h
25000*1500*2200mm
Product Details

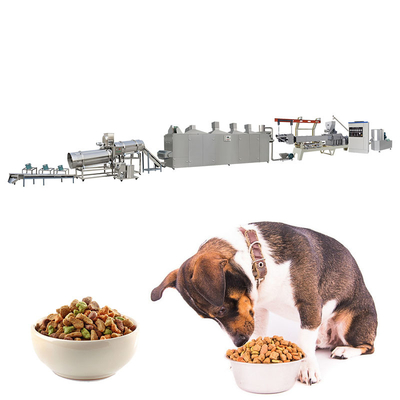

Mixer--Twin screw extruder--Dryer machine--Flavoring machine
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 2

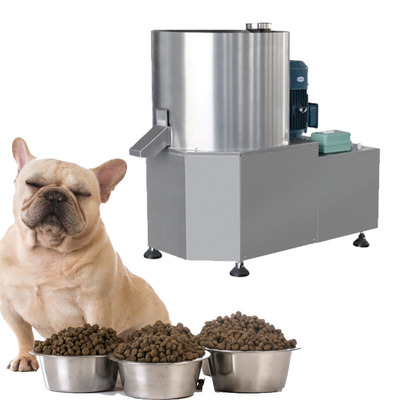

Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.
Type
Vertical and horizontal type
Material
stainless steel, carbon steel
Motor
4kw, 7.5kw, 15kw etc
Capacity
20kg/time,50kg/time, 100kg/time, 200kg/time etc
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 3

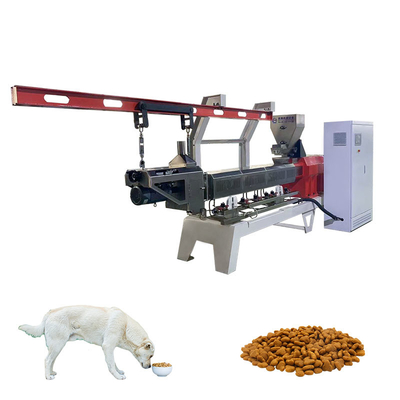

Name
Twin screw extruder
Usage
To extrude the raw materials and make them to the required shape and size of the fish feed pellets by mould
Model
MT65, 70, 75, 95
Motor
22kw, 30kw, 45kw etc
Capacity
100kg/h to 10 ton/h
Material
Screw materials 38CrMoAlstainless steel, carbon steel
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 4

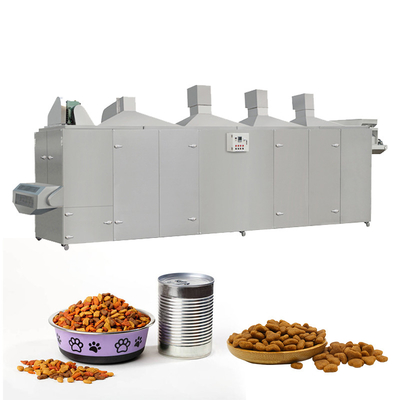

Name
Dryer (oven)
Usage
the expanded food go through the "s" passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 5
Name
Flavoring machine
Usage
To mix the oil and flavors on the surface of the fish feed
Type
single and double flavoring drum
Motor
0.75kw
Capacity
100kg/h to 10 ton/h
Material
stainless steel
Samples
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 6
Raw material:
Rice flour, corn flour, wheat flour, low temperature soya flakes meal, rice bran , wheat bran, fish powder, bone powder etc.
Final product:
fish feed pellet /color customized/floating and sinking type/length customized diameter from 0.2mm to 20mm
Company information
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 7
Our company(MT Machinery Co., Ltd.'s ) have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial microwave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
Packing&Delivery
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 8
Inside package is plastic film, outside is wooden or plywood case(based on the customers’need).
• Only plastic film nude packing with wooden pallet.
• We can supply fumigation package and certificate.
• Shipping, train, express or upon clients' demands.
Our Services
Dry Pet Food Processing Line For The Production Of Dog Food Extruder 9
1)Provide factory layout according to your factory size in advance;
2)Provide the basic formula;
3)Inspect the machine before leaving the factory;Oversea installation and commissioning equipment;
4)Technician will work with your workers together and teach your workers how to install machines,
how to operate machines, how to maintain machines during daily working;
5)Our engineers will teach your workers how to clean the extruder, how to change the screw,
how to change barrel etc, and provide technology support with you forever;
6)Provide English Version of Installation / Operation / Service / Maintenance Manual.
FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, we could discuss before contract.
Q: Could you supply all the parameters about the machines?
A: Yes, we will supply all the parameters, price, layout drawing, factory design etc.
Q: What is your terms of payment ?
A: 30% T/T in advance , 70% balance before shippment after inspection.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for 7-14 days period installation and training to the operators.
Q: do you supply any formula to buyer?
A: yes, we supply formulas to buyer.
