Food Grade Pre Gelatinized Modified Starch Production Line

Food Grade Pre Gelatinized Modified Starch Production Line
Food Grade Pre Gelatinized Modified Starch Production Line Food Grade Pre Gelatinized Modified Starch Production Line Food Grade Pre Gelatinized Modified Starch Production Line Food Grade Pre Gelatinized Modified Starch Production Line

Large Image :  Food Grade Pre Gelatinized Modified Starch Production Line

Product Details:
Place of Origin: JINAN
Brand Name: MT Machinery
Certification: CE
Model Number: MT65/MT70/70C
Payment & Shipping Terms:
Minimum Order Quantity: 1-5set
Price: 7500-26000USD
Packaging Details: Film packaging or wooden case packaging
Delivery Time: 5-15 Work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15-20sets/Month

Food Grade Pre Gelatinized Modified Starch Production Line

Description
Name: Modified Starch Factory Supply Food Grade Modified Starch Corn Machine Voltage: 380v-440v 50hz-60hz
Weight: 1300kg Dimension(l*w*h): 2300*1650*2100mm
Warranty: One Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

pre gelatinized modified starch production line

,

food grade modified starch production line

Industrial automatic stainless steel pre-gelatinized starch
making machinery
Product Description

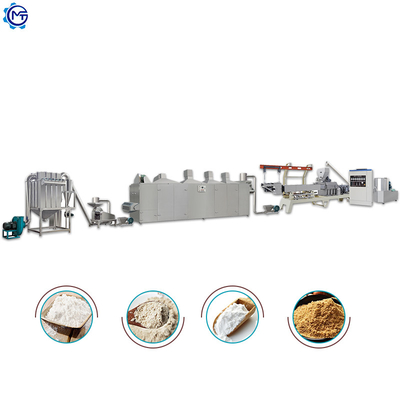

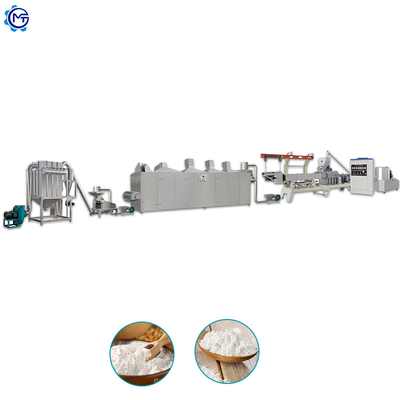

Industrial pre-gelatinized starch machine uses cheap natural starch, like corn starch, cassava starch, tapioca starch etc as main materials, through extruding treatment process, to produce multi-functional and high-valuable modified starch, Pre-gelatinization Starch or Denatured Starch. Its Double Screw Extruder is special designed,consists of 6 systems: feeding system, extruding system, cutting system, heating system, conveying system and cooling system, its barrels and screws structure can easily realize the function of changing the properties of the starch. Modified Starch can be used in many fields like Textile, Food, paper making, building material, casting, oil drilling and so on.
Food Grade Pre Gelatinized Modified Starch Production Line 0
Food Grade Pre Gelatinized Modified Starch Production Line 1
Food Grade Pre Gelatinized Modified Starch Production Line 2

Food Grade Pre Gelatinized Modified Starch Production Line 3
Modified Starch Flow Chart :
Food Grade Pre Gelatinized Modified Starch Production Line 4
Product parameters
Model
Installed power
Power consumption
Capacity
Dimension
MT65
72kw
50kw
140-160 KG/H
2200*1000*2300MM
MT70
92kw
65kw
240-260 KG/H
2600*1000*2300MM
MT85
108kw
75kw
500-600 KG/H
4500*1000*2600MM
Food Grade Pre Gelatinized Modified Starch Production Line 5

Mixer

Function:Flour Mixer is used to mix the raw material, like corn flour, rice flour with liquid and other additives. Stainless steel
structure, especially the parts in contacting with the raw material or products;
The discharge hole adopts the new handle-opened design and sealed well; Equipped with safety device and safety switch. While the
top cover or the discharge hole is open, it will shut down automatically.Cover small area, easy cleaning, and operate stably.
MT 65 Double screw extruder machine
Function:Double Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the
materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward
transport, mixing, feeding of additives, injection of liquids, de-gassing, cooking and forming.
The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in
energy and reduced management cost; Automatic dosing unit for utilization with any type of flours and starches (the size should be
60-80 mesh);
Food Grade Pre Gelatinized Modified Starch Production Line 6
Food Grade Pre Gelatinized Modified Starch Production Line 7

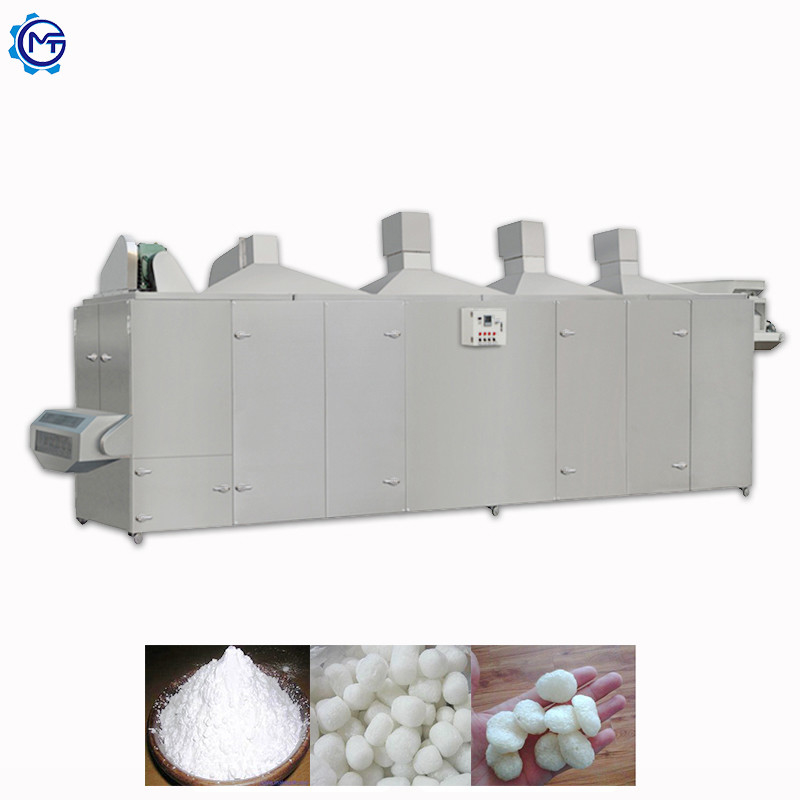

Dryer
Brand: MT
Original: China
It is used for drying . The net belt running speed can be controlled to change the food drying time in the dryer . The temperature also can be controlled .
