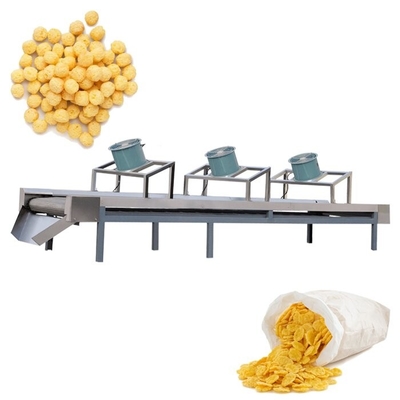

Stainless Steel Alloy Screw Corn Snacks Making Machine Small
Basic Properties
Place of Origin:
China
Certification:
CE
Trading Properties
Minimum Order Quantity:
1-3set
Price:
800-8500usd
Payment Terms:
D/P, T/T, D/A, L/C, Western Union, MoneyGram
Supply Ability:
15-20sets/Month
Product Summary
Stainless steel small corn flakes machine corn flakes cereal making machines Product Description Automatic Corn flakes making manufacturing machinery corn flake extruder machine 1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self...
Product Details
Highlight:
alloy screw corn snacks making machine
,stainless steel corn snacks making machine
,small corn snacks making machine
Product Description
Stainless steel small corn flakes machine corn flakes cereal making machines
Product Description
1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, with extends gear life.
7. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
2. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely
3. SIEMENS(China) Motor
4. It adopts speed adjusted converter on feeding system, extrusion system and cutting system. Food grade stainless steel twin screw feeding machine guarantees stable materials feeding in the whole food process.
5. Adopted the Delta inverters, ensure the extruder better running.
6. The gearbox has automatic lubrication function, with extends gear life.
7. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
8.Raw materials:Corn flour,wheat flour....(We can provide receipt,so don't worry!!!)
9.Products:Puff snack food,Breakfast cereals,Corn flakes...
10.Capacity:100-120 kg/h,180-200 kg/h,300 kg/h,500kg/h......
11.Flow Chart: Mixing——Extrusion——Flaking——Baking——Flavoring system(sugar taste...)——Baking
12.Voltage:Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
13..Machines Materials: All the machines are made by food grade stainless steel.
9.Products:Puff snack food,Breakfast cereals,Corn flakes...
10.Capacity:100-120 kg/h,180-200 kg/h,300 kg/h,500kg/h......
11.Flow Chart: Mixing——Extrusion——Flaking——Baking——Flavoring system(sugar taste...)——Baking
12.Voltage:Three phases: 380V/50HZ, Single phase: 220V/50HZ, we can make it according to customers' local voltage of different countries.
13..Machines Materials: All the machines are made by food grade stainless steel.
Product parameters
Product details
Mixer
Output:10-30kg/load Power:4kw Tank Size: φ600 x500mm Dimention:1000*800*1200mm Flour Mixer is used to mix the raw material, like cornflour , rice flour, fish bone flour with liquid and other additives.
Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.
Stainless steel structure, the parts in contacting with the raw material or products, cover small area, easy cleaning and operate stably.
Screw conveyor
Driving Power: 0.75kw Dimension: 2700×500×2400mm
Screw Conveyor is used to convey the materials to the feeder of the extruder.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Stainless steel structure, especially the parts in contacting with the raw material or products; The materials is conveyed in a sealed stainless steel roller to the feeding hopper of extruder without leaking, dust pollution; Equipped with vibrating sifter to feed the materials stably and evenly; Easy cleaning and operation; run stably.
Silk Road-65Double Screw Extruder serves to gelatinize flours and starches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, de-gassing, cooking and forming.
Corn flakes press machine.
Material:- Stainless Steel Function:- Pressing Extruded pellets into flakes Separate Controller Box 1.it with big roller to press
2.it with cooling system 3.it can adjust the roller distance to adjust the flakes thickness Power:16.12 kw Size: 1550*1300*2000mm,
Roller:510* 310*1050mm
2.it with cooling system 3.it can adjust the roller distance to adjust the flakes thickness Power:16.12 kw Size: 1550*1300*2000mm,
Roller:510* 310*1050mm
High-temperature Oven
Technical Parameter:
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes ,this oven we use gas for baking ,and there are both side
baking system ,can make the corn flakes more crisp.
Size:4.5*1.4*1.8m
Power:3.75kw
Function: this high temperature oven is used to baking the corn flakes ,this oven we use gas for baking ,and there are both side
baking system ,can make the corn flakes more crisp.
Sugar Spraying System
Technical Parameter:
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.
Total Power: 28.75KW
Dimension: 4000×1900×1880mm
Roller Size: about Ø600 x 2700mm
Function: This machine consists of conveyor, melting tank and temperature keeping roller, and it is used to spray sugar on the
surface of the corn flakes.
Product Show
Corn flakes being one of most nutritious foods and is consumed as breakfast food not only in China but-elsewhere in the world. Basically, it is prepared from maize; this is the main raw material. Flavours, like sugar or salt are also added. Maize, the main raw material, is itself a corn grain. Corn flakes have very good taste. Though several other breakfast cereals are also available in the market but they are still to gain popularity.
