Automatic 70kw Oem Dry Pet Food Production Line Big Capacity

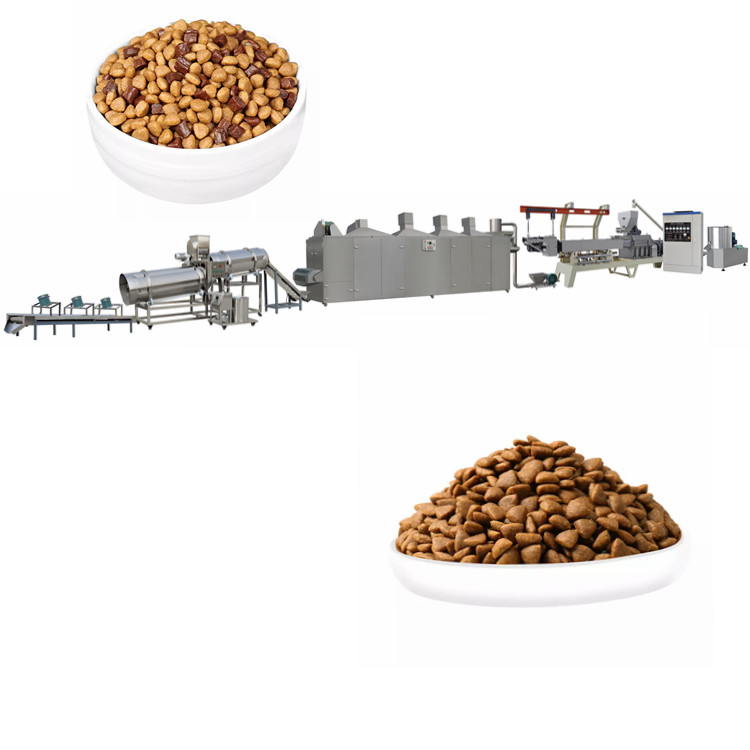

Large Image : Automatic 70kw Oem Dry Pet Food Production Line Big Capacity

Product Details:

Place of Origin:	JiNan China
Brand Name:	MT Machinery
Certification:	CE
Model Number:	MT65/MT70/70C

Payment & Shipping Terms:

Minimum Order Quantity:	1-5set
Price:	800-60000USD
Packaging Details:	Film packaging or wooden case packaging
Delivery Time:	5-15 Work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	15-30sets/Month

Contact Now

Automatic 70kw Oem Dry Pet Food Production Line Big Capacity

Description

Name:	Automatic OEM Big Capacity Cat Food Equipment Plant Dry Dog Food Machine	Warranty:	1 Year
Voltage:	380V/50HZ	Condition:	New
Power(w):	30-70kw	Capacity:	100-500kg/h
Motor:	Siemens Motor
High Light:	oem dry pet food production line , 70kw dry pet food production line , oem pet food production line

Automatic OEM big capacity cat food equipment plant Dry Dog food machine

New condition animal pellet process plant stainless steel pet feed equipment cat food extruder machine is plant or animal material intended for consumption by cat or other canines.

The pet food is close to the human beings food in the fine level, the health index and the ingredients, some of them request more highly than human beings. In extruder, the ingredients are cookedunder intense heat and pressure as it moves toward the open end of the extruder where ingredients pass through a shaping die and knife. Cat food is dried in a multi-pass dryer until its moisture content is low enough to make it shelf stable. Cat food may pass through a coating drum where animal fat and vitamins are applied onto cat food.

Product Description

NO.	Name	Brief introduction
1	Raw material	Corn flour; soya flakes meal;animal bone powder,fish powder; etc.
2	Shape	up to customer's demand
3	Processing flow	Mixing system; Extrusion system; Drying system; Flavoring system; Packing System
4	Equipment involved	Mixer; Screw elevator; Double screw extruder; Air conveyor; Dryer; Flavoring system;Packing machine
5	Final products	Dog feed;Cat feed;Bird feed;Fish feed;etc.
6	Machine material	Stainless steel 201 or as customer’s request

Product parameters

Model	MT-65	MT-70	MT-70C	MT-85	MT-95
Voltage customized	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
main power	22kw	30kw	45kw	75kw	110kw
Dryer Fuel	gas	gas	gas	gas	gas
Capacity	100-150kg/h	120-150kg/h	150-250kg/h	300-500kg/h	800-1000kg/h
Length	23m	26m	30m	45m	55

The line is working principle 1. Powder mixing machine: Choose different types of powder mixing machine according to the output of the production line. There are mainly three models for your choice. 2. Conveyance machine: use the motor as the power screw conveying to ensure convenient and fast feeding. 3. Extruder machine: Choose different types of MT type puffing host according to the output of the production line. Corn meal, cereal meal, bone meal, meat meal, etc. can be used as raw materials, and the specific product shape The mold can be replaced. 4. Hoist: Feed the feed to the oven. The height of the hoist is determined according to the oven. An air conveyor can also be used. 5. Multi-layer oven: the oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet, the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed 6. Vibrating screen: Sieve to remove excess scraps. 7. Flavoring line: There are octagonal tube, cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.

Double Screw Extruder Machine

By two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing,de-gassing, cooking and forming.The inside structure is made by painting steel, but all the parts touching with the raw material or products are made by stainless steel;The use of a continuous automatic process provides greater production outputs than offered by traditional systems, with savings in energy and reduced management cost.

Multi-layer oven

The oven is mostly electric oven, the temperature is between 0-200 degrees and the temperature is adjusted by the control cabinet,the inside is stainless steel double-layer mesh bag, the baking time can be adjusted according to the speed.It is composed of oven the me, control cabinet all stainless steel.oven, compact structure, cover an area of small, dry area is large, small,small heat.

Cooling Machine

Technical Parameter: Power:0.77KW Dimension:6000 x 800 x 1000mm Out of the seasoning machine, surface must have a lot of oil, and the oven keypad for completely faded, 8 m mesh belt to reduce temperature of the material and make the oil content and have attractant is absorbed adequately and can reach the level of direct packaging.

Seasoning line

It is used to spray the flavor powder and oil onto snacks evenly.Includes FOUR devices: Coating Drum, Oil Sprayer,Small Hoist and Flavor Sprayer.Stainless steel structure, especially the parts incontacting with the raw material or products;There are octagonal tube , cylinder, lifting single drum, double drum seasoning line, which is configured according to the output and the nature of the product.
