Delta ABB Snack Food Production Line Double Screw Extruder

Delta ABB Snack Food Production Line Double Screw Extruder
Delta ABB Snack Food Production Line Double Screw Extruder Delta ABB Snack Food Production Line Double Screw Extruder Delta ABB Snack Food Production Line Double Screw Extruder Delta ABB Snack Food Production Line Double Screw Extruder Delta ABB Snack Food Production Line Double Screw Extruder

Large Image :  Delta ABB Snack Food Production Line Double Screw Extruder

Product Details:
Place of Origin: CHINA SHANDONG
Brand Name: MT
Certification: CE
Model Number: MT 65 70 70C
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD 25000-35000 SET
Packaging Details: PLASTAIC FILM PACKING
Delivery Time: 30-45 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1 SET MONTH

Delta ABB Snack Food Production Line Double Screw Extruder

Description
Product Name: 2022 Hot Sale Factory Price Corn Puff Snack Food Machine Snack Food Production Line Usage: Commercial Usage
After-sales Service Provided: Field Installation,Video Technical Support Application: Snack
Capacity: 300~1000kg/hr Inverter: Delta/ABB
High Light:

Delta ABB Snack Food Production Line

,

Delta ABB Double screw extruder machine

,

Double screw extruder machine 25000*1500*2000mm

2022 Hot Sale Factory Price Corn Puff Snack Food Machine Snack Food Production Line





Product Description:

2022 Hot Sale Factory Price Corn Puff Snack Food Machine Snack Food Production Line is a new type of extruding food machine studied and developed by ourselves on the basis of learning from advanced technology in the world so that its technical performance and quality of products both reach to the most advanced in the world.This line will finish

mixing,extruding,shaping,core-filling,cutting,spraying and producing in one-pass operation automatically.This line features

lots of types,flexible collocation,extensive applied materials,various products and easy operation.





Model
Power Consumption
Actual Consumption
    Output
                       size
MT65 processing line
84KW
59KW
100-150 kg/h
25000*1500*2000 mm
MT70 processing line
132KW
92KW
150-200 kg/h
30000*1500*2000 mm
MT70C processing line
155KW
105KW
200-250 kg/h
35000*1500*3000 mm



Delta ABB Snack Food Production Line Double Screw Extruder 0

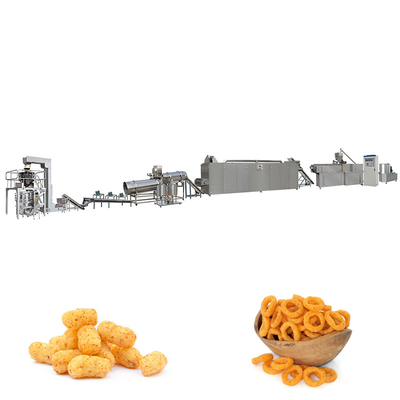

Details Images of snack pellet production line:

Delta ABB Snack Food Production Line Double Screw Extruder 1

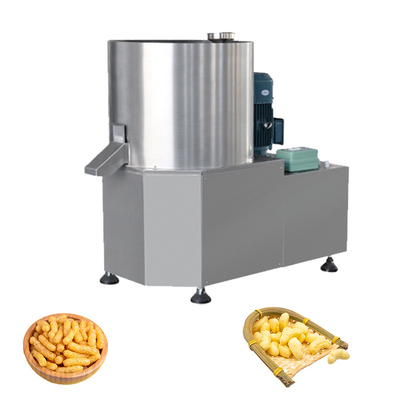

Mixer machine

Power: 3kw
Output: 70-100kg/h
Size: 900*700*1200mm
Function:To mix the material such as the wheat flour and waster.

Delta ABB Snack Food Production Line Double Screw Extruder 2

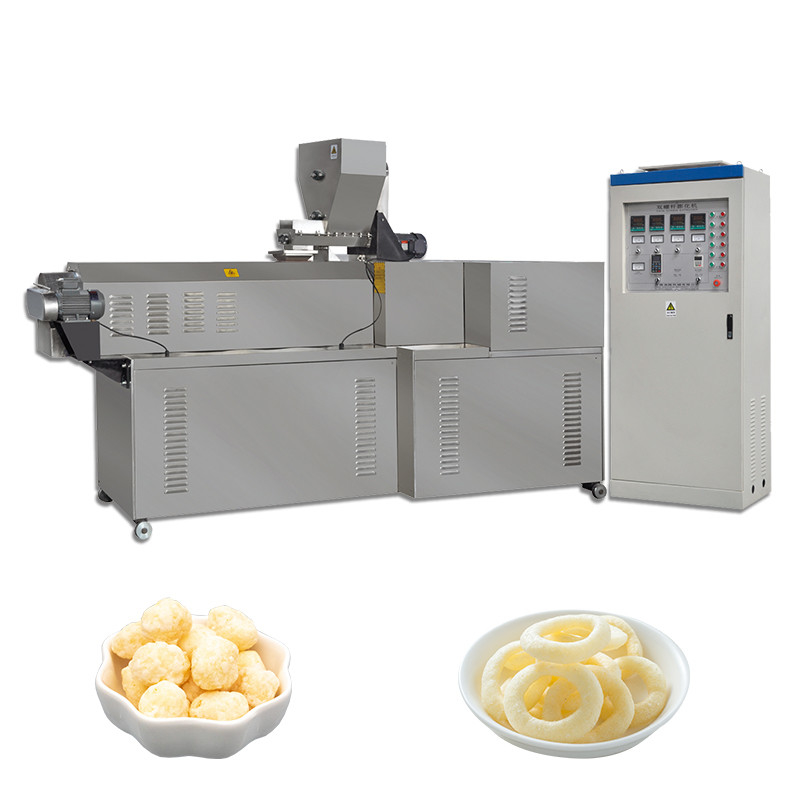

Double screw extruder machine:

Technical Parameters:
Power(KW): 30kw
Dimension(m): 3×1.1×1.9
Heating power: 14kw
Feeding power: 0.75kw
Cutting power:0.75kw
Function: Double Screw Extruder serves to gelatinize flours andstarches continuously and automatically. After dosing, the materials are worked by two co-rotating screws composed by sectional modules for the following functions: forward and backward transport, mixing, feeding of additives, injection of liquids , de-gassing, cooking and forming.



Delta ABB Snack Food Production Line Double Screw Extruder 3

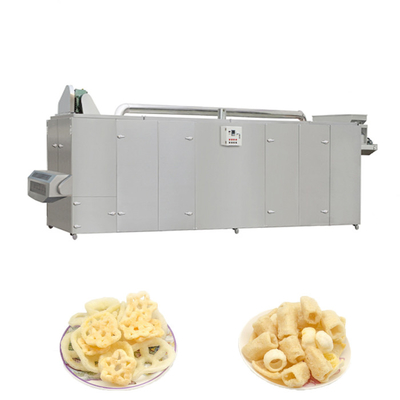

                                                                                             Dryer Machine

Structure detail: Stainless steel structure, especially the parts in contacting with the raw material or products; Five layer structure can prolong the drying time and reduce the coverage area; Each layer is made of mesh belt which is made by SUS; Side guards to prevent products from falling off the belt; Various speed inverter drives for five layers; Auto temperature control system with the temperature MAX 160℃; The body is well sealed to prevent any heating leakage, and thus reduce the savings in energy; Three kinds of power can be choices: Electric, gas or oil.





Delta ABB Snack Food Production Line Double Screw Extruder 4



Seasoning machine:

Drum Driving Power:1.1kw
Drum Size:φ700 x3000mm
Power:0.75kw
Flavoring System is used to spray the flavor powder and oil onto snacks evenly. Includes FOUR devices: Coating Drum, Oil Sprayer,Small Hoist and powder hopper. Stainless steel structure, especially the parts in contacting with the raw material or products; Rotary speed can be adjustable; Rotary direction can be adjustable (clockwise or anti-clockwise); The tank is equipped with heating machine for heat the oil and other liquid. The heating temperature can be adjustable;





Company Profile of snack pellet production line:

Delta ABB Snack Food Production Line Double Screw Extruder 5

Our company(MT Machinery Co., Ltd.'s )has good experience of the industry development. We have well-experienced managers,outstanding engineers as well as well-trained technical workers. By constant technical exchange with well-known firms of the same line in the world and also by introduction of advanced technique and experience into our company, we have established a strong technical guarantee system. Our company is a manufacturer of puffed extruder and food machinery. Our products are sold very well throughout China and are also introduced to Southeast Asia, East Europe, Africa and other regions.Our market share is increasing each year.



Packing & Delivery of snack pellet production line:



Delta ABB Snack Food Production Line Double Screw Extruder 6

♥Wooden or metal case according to specific size of each equipment, we twine thick plastic coating for each machine.
♥Tight the equipment in the truck without space to ensure no rubbing during the transportation.
♥We can adjust according to the customer’s demand.



Certification of snack pellet production line:

Delta ABB Snack Food Production Line Double Screw Extruder 7

We can provide the electronic edition certificates for Jinan MT Machinery extruded Customizable Corn Puffing Ball Snack Food Twin Screw Extruder Snack Food Production Line if asked, or you can see the original documents in our factory. We can ensure the truth of our certificates.



Our services of snack pellet production line:



1. Our engineers available to service machinery oversaes.
2. Help you choose the most suitable twin screw extruder food snacks machine.
3. Customize the puffed corn extruder according to your request.
4. Our factory is equipped with the most advance machineries available. You can rely on us as the machinery specialist. We provide custom machinery and engineering services to cater you need.


FAQ of snack pellet production line:
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .

Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1years

Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.

Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians
